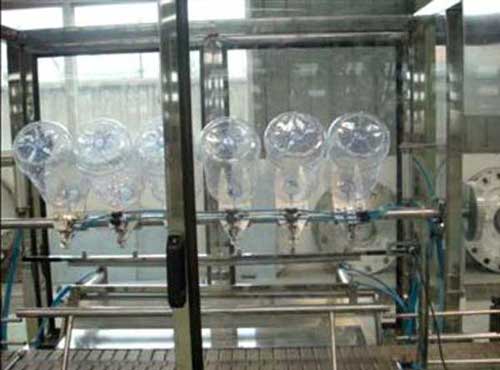

The rising machine have 6 washing heads, 6 bottles are running on the conveyer belt with photo electricity, the bottle cylinder will go out, meanwhile push the bottle into bottle support ring, and bottle neck support catch the bottle neck, than main shaft turned 180degree under gear wheel. Let bottle’s mouth face to land, jetting water into bottle, after a few seconds, the main shaft will be back, than finishing the washing.

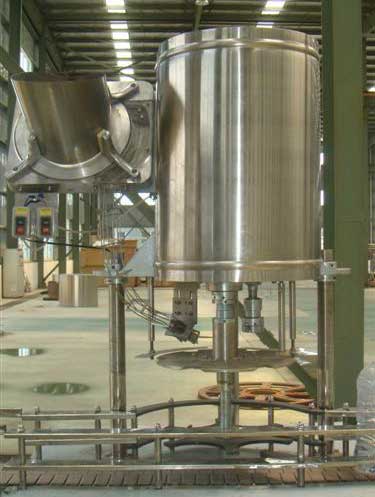

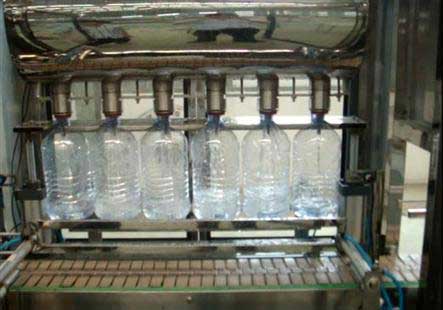

The inline filling machine is composed water tank, float ball, shaft, filling valve, Pneumatic component, electric machine. Washing finished bottle is conveyed into filling position , cylinder push and hold the plate which can hitch bottles , the mouth of bottle can open the valve , finishing filling , plate which can hitching bottle will running down, the valve will closed automatically, the time lasting of filling can be adjusted .

This Capping machine have only 1head, when running. There are six positions for capping, and have 1 capping head, can automatically capping. The capper will be screw type with 3 start neck finish.
