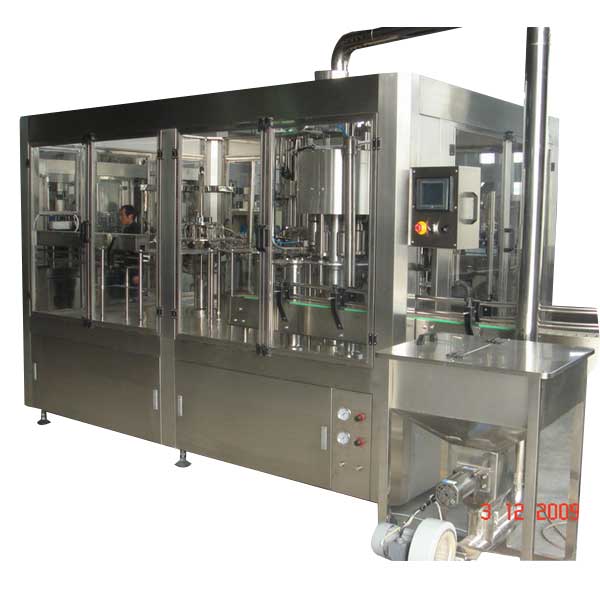

This machine is set, blunt bottle, filling, sealing the machine is a automatic multiple joint unit, it is suitable for various drink not containing gas, fruit juice, wine, mineral water, pure water, tea drinks and other production automatic washing, filling and sealing. The unique design, beautiful modeling, the function is all ready, adaptable, simple operation, high automatic degree, is the present domestic most advanced drink mechanical one.
Parameters:
Blunt bottle: 8 head
head filling: 8 head
screw cap: 3 head
Production: 2000 - 2500 bottles / (500 ml)
Power: 2 kw (total input power)
Volume of PET bottle : 0.25L-1.5L
Diameter of bottle: 50-100mm
Height of bottle: 170-320mm
Cap diameter: plastic screw type cap diameter from 28mm
Filling temperature: NORMAL TEMPERATURE
Filling pressure: ¡Ü0.15Mpa
Filling precision: ¡À2-3%
Pressure of washing: 0.2Mpa
Washing consuming clear water:400kg/h
Gas consumption: 0.4m3 /min
Power: 3.5 kw (total input power)
Dimension: 1900¡Á1500¡Á2250mm
Weight:1900kg
|
