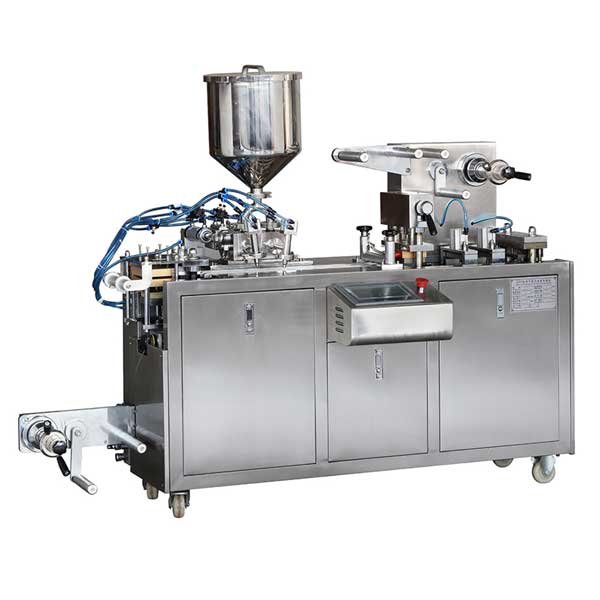

LM-BP80 Liquid Blister Packaging machine

Application: suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc .

Features:
1.It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2.Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user¡¯s requirement.
3.It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4.It is optional to be equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.

Model : LM-BP80
Punch frequency : 10-33times/min
Production capacity : 2400plates/hour
Max. Forming area & Depth : 105x70(standard depth ¨Q15mm), Max. Depth 25mm(As adjusted)
Total power supply : 380V/220V 50Hz 2.8Kw
Standard Stroke range : 30-80mm(can be designed as per user¡¯s required)
Standard plate size : 80x70mm (can be designed as per user¡¯s required)
Air pressure : 0.4-0.6Mpa
Compressed air required : Air compressor¡İ0.3m3/min
Main motor : 0.75Kw
PVC hard Film : 0.15-0.5*110 mm
PTP Aluminum film : 0.02-0.035*110 mm
Dialysis Paper : 50-100g*110 mm
Mould cooling : Tap water or Recycling water
Overall Dimension : 1840x590x1100 mm (LxWxH)
Weight : Net 450kg Gross weight: 520kg
Noise index :
<75dBA
