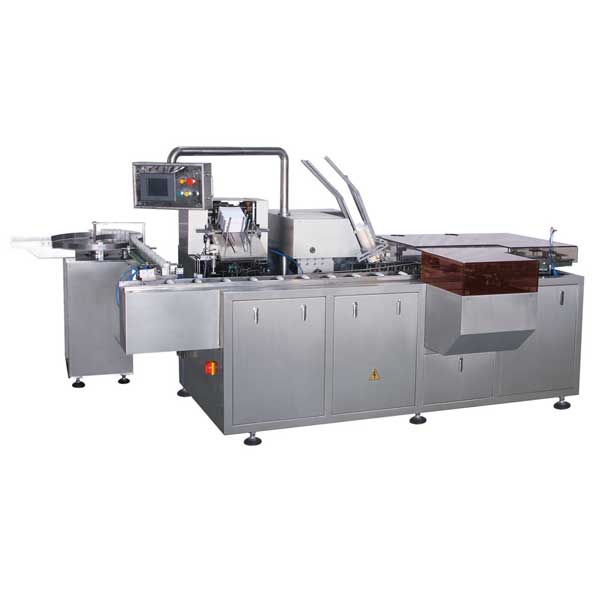

LM-CP120 automatic box cartoning machine

Application:
The machine can open carton, fill material, fold carton, tuck carton in the same time. Suitable for kinds of cartons.

Features:
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc;
2. Automatic detection and rejection device for lacking of leaflet.
3. Automatic displaying device for speed and finished product counting

PROJECT PARAMETER
Encasing speed 30-120 cartons/min
Box Quality requirement 250-350g/İO

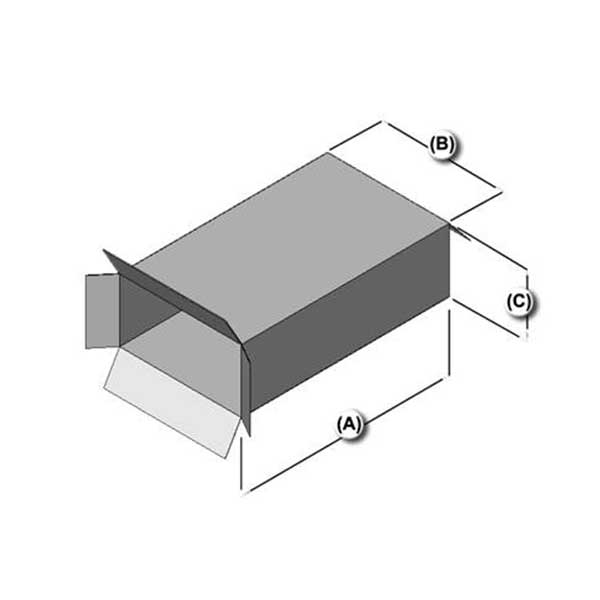

Dimension range£¨L*W*H£İ £¨55-250£İmm*£¨30-120£İmm*£¨15-50£İmm
Leaflet Quality requirement 50-65g/İO
Unfolded leaflet specification£¨L*W£İ £¨80-300£İİL*£¨70-210£İİL
Folded leafilet specification£¨1-4£İ£¨L*W£İ £¨70-210£İİL*£¨20-40£İİL
Compressed air Working pressure 0.5-0.7mpa
Air consumption 120-160L/min
Power supply 220V /50HZ
Motor power 0.75kw
Machine dimension£¨L*W*H£İ 2100İL*880İL*1800İL
Machine weight 1200kg
