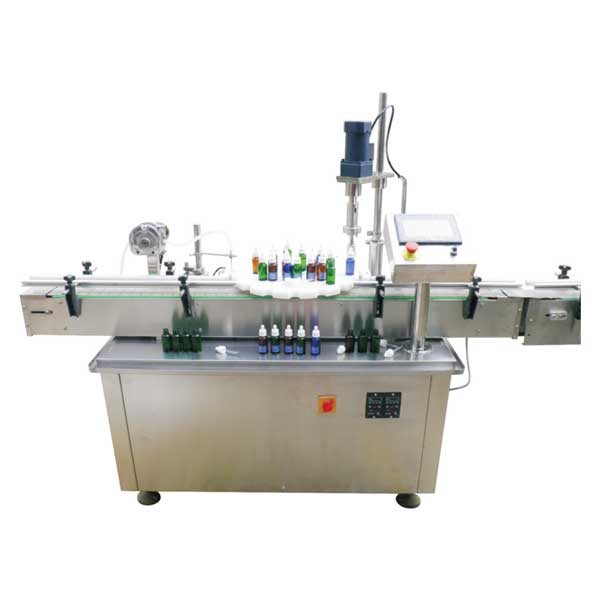

LM-GE30 E liquid filling Line for glass bottles

Application:
This LM-GE30 e-liquid filling machine is mainly available to fill eye-drop, e juice, e cigarette into various round and flat glass bottles with the range from 5--30ml.

Features:

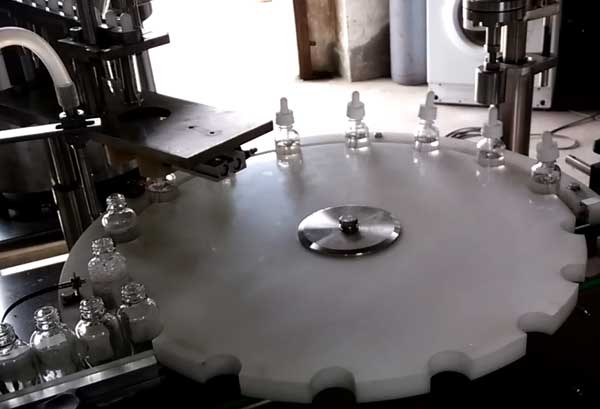

1.High precision can provides a regular plate to position, plugging and capping;
2.Accelerating can makes capping head go up and down; constant turning arm screws caps;
3.Peristaltic pump measures filling volume; and touch screen controls all action.
4.No bottle no filling. If there is no plug in the bottle, automatic e-liquid glass bottle filling machine will not cap until plug detected in the bottle.

Model LM-GE30
Capacity 20-50bpm
Volume 5ml-30ml
accuracy +/-1%
Power 2.0kw
Power supply
380V 50HZ or 220V 60HZ
weight 450kg
