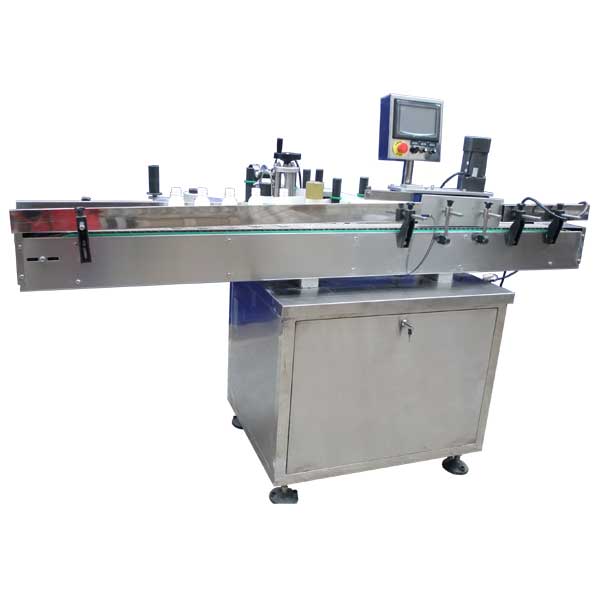

LM-LB30 automatic vertical labeling machine

Application:
It is i used for sticking label outside round or square bottles. The machine ensure smooth labels, clearly printed dates and batch numbers (the printer allows three rows of characters).

Features£º
¡€ Labeling location with high precision
¡€ Product quantity can be controlled.
¡€ No bottle no labeling, It can monitor and correct automatically if there is no label.
¡€ Can be used not only individually, but also can be connected with full automatic packing line.
¡€ This machine is provided with a multiple control system, which assures automatic stop at the lacking or breaking of labels as well as at the lacking of bottles.
¡€ This product conforms to the specifications of GMP absolutely. Which is widely used in pharmaceutical, foods and chemical industries

Labeling machine video link:
https://www.youtube.com/watch?v=RdrJ7BzkW7k
https://www.youtube.com/watch?v=FNBKDbkaTZI

Model: LM-LB30
Bottle Diameter: §æ20-§æ100mm
Capacity: 30-100 BPM
Labeling Precision: ¡Ü ¡À1 mm
Power supply: 380V / 50Hz or 220V/60HZ
Label Length: 20-200mm
Label Width: 10-100mm
Power: 0.5kw
Weight: 250kg
Dimension: 2000*650*1350mm
