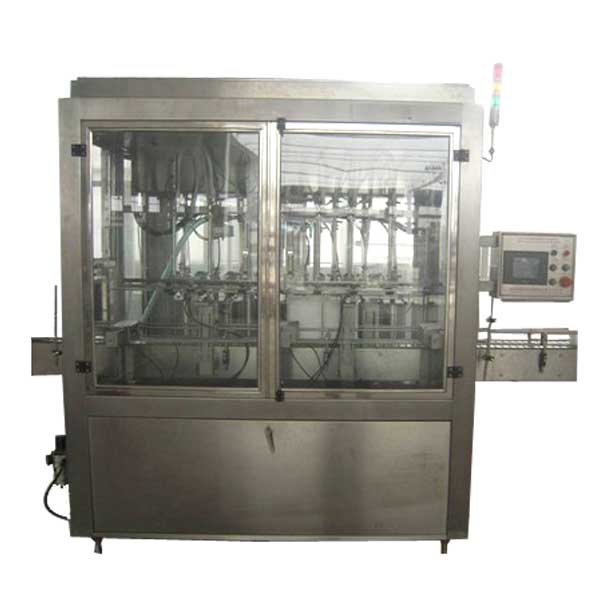

LM-NL4 Auto Inline Lubricants Filling Machine

Introduction:
1. Auto Lubricants Filling Line is composed of microcomputer (PLC) programmable control, measurement of the flow meter, photoelectric sensor, pneumatic operation, which integrates high-tech filling equipment.
2.Used in filling edible oil, engine oil, antifreeze and other oil preparations. Filling measurement precision, no drop leak. This lubricants Filling Line can be used in the 500 ml - 5000 ml bottle shape (including deformed bottles) filling

Video link:
https://www.youtube.com/watch?v=YdtJ8j2Z4Mk
https://www.youtube.com/watch?v=asNlg2WiSkQ

Lubricants Filling Machine Main Technical Parameter:
Model HX-8 HX-10 HX-12
Filling head 8 pcs 10 pcs 12 pcs
Filling volume scope 0.5-5L
Filling capacity 800-1000 1000-1200 1200-1500
Rated power 1.1kw
Working voltage 380V
Air consumption 0.5cm3/min
Weight(kg) 850 1000 1100

Overall dimension(mm)

2200*1500*2000 2400*1500*2000 2600*1500*2000
