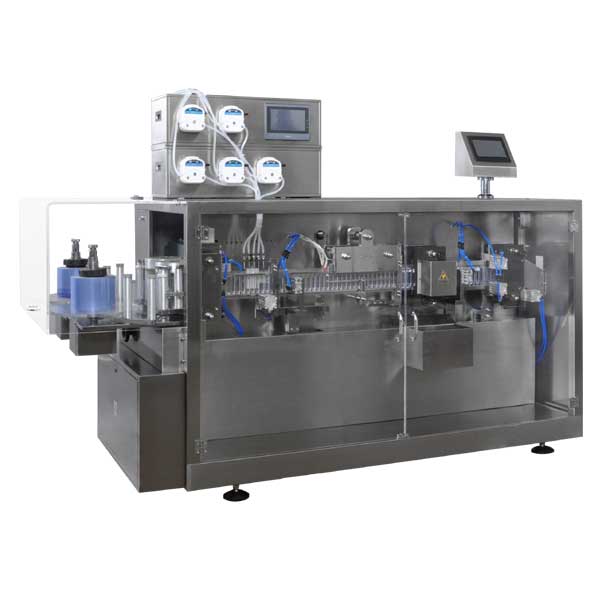

LM-OP5 automatic ampoule filling sealing labeling machine

This automatic ampoule liquid filling sealing labeling machine is applied to fill small dose, eye-drop into PE/PVC ampoule with the range from 1--30ml.
The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation.

1.PLC control, adjustment with stepless frequency conversion .
2.Automatic program consists of film feeding, plastic molding, filling, batch number printing, cutting the tail, cutting separately,etc.
3.The quantity can be controlled.

Model: LM-OP5
Maximum depth forming: 12 mm
Output: 15-20 times/min
Filling Precision: ¡Ü¡À1%
Power Supply: 380V/50Hz
Film materials: PVC/PE (0.2-0.4)*120mm
